| VOL. 38, MONTHLY EDITION No 11 November 29, 2013 Publication Number 40063779 |
|||
|
CONTENTS |
|||
Page |
|||
| Section 1 |
Safety and General Information | 1 - 3 |
|
| Section 2 |
Chart Corrections | 4 - 5 |
|
| Section 3 |
Radio Aids to Marine Navigation Corrections | 6 - 14 |
|
| Section 4 |
Sailing Directions and Small Craft Guide Corrections | 15 |
|
| Section 5 |
List of Lights, Buoys and Fog signals Corrections | 16 |
|
Maritime Services Directorate Aids to Navigation |
|||
Fisheries and Oceans Canada - Official publication of the Canadian Coast Guard |
|||
 |
|||
Geographical positions refer directly to the graduations of the largest scale Canadian Hydrographic chart unless otherwise indicated.
Bearings refer to the true compass and are measured clockwise from 000° (North) clockwise to 359°; those relating to lights are from seaward.
Visibility of lights is that in clear weather.
Depths - The units used for soundings (metres, fathoms or feet) are stated in the title of each chart.
Elevations are normally given above Higher High Water, Large Tides unless otherwise indicated.
Distances may be calculated as follows:
1 nautical mile = 1 852 metres (6,076.1 feet)
1 statute mile = 1 609.3 metres (5,280 feet)
1 metre = 3.28 feet
Temporary & Preliminary Notices are indicated by a (T) or a (P) before the chart action and in the section 1. Please note that Nautical charts are not amended by the Canadian Hydrographic Service for Temporary (T) and Preliminary (P) Notices. It is recommended that mariners chart these corrections in pencil. Listing of charts affected by Temporary and Preliminary Notices are revised and promulgated quarterly in Section 1 of the Monthly Edition.
Please note that, in addition to the temporary and preliminary changes normally advertised as (T) and (P) Notices, there are a few permanent changes to navigational aids that have been advertised as Preliminary Notices to Mariners while charts are being updated for new editions.
Marine Information Report & Suggestion Sheet - Mariners are requested to notify the responsible authorities when new or suspected dangers to navigation are discovered, changes observed in aids to navigation or corrections to publications are seen to be necessary. Such communications can be made using the Marine Information Report & Suggestion Sheet inserted on the last page of each monthly edition of Notices to Mariners.
Canadian Hydrographic Service - Information Published in Section 2 Notices to Mariners - Mariners are advised that only the most critical changes that directly affect safety to navigation are issued in Chart Corrections - Section 2. This limitation is required to ensure that charts remain as clear and easy to read as possible. As a result, mariners may see minor discrepancies of a non-critical nature between information in official publications. For example, a small change in the nominal range or height of a light may not result in the production of a chart correction, in Notices to Mariners, but may result in a List of Light, Buoys and Fog Signals correction.
In case of discrepancy between information provided on CHS charts related to aids to navigation, and the List of Light publication, the latter shall be deemed as containing the most up to date information
Canadian Nautical Charts & Publications - A source list of Canadian Nautical Charts & Publications is published in Notice No. 14 of the Notices to Mariners Annual Edition April 2011. The source supply and the prices effective at the time of printing are listed. For current chart edition dates refer to the following web site: http://www.chs-shc.gc.ca/charts-cartes/paper-papier/index-eng.asp
NOTE: Cette publication est aussi disponible en français.
Corrections to nautical charts will be listed in numeric order by chart number. Each chart correction listed applies only to that particular chart. Related charts, if any, will have their own specific correction listed separately.
Users should also refer to CHS Chart 1 Symbols, Abbreviations Terms for additional information pertaining to the correction of charts.
The illustration below describes the elements that will comprise a typical Section 2 chart correction.
ADVISORY
NOTICES TO SHIPPING (WRITTEN AND BROADCAST)
The Canadian Coast Guard is implementing a number of changes to the aids to navigation system in Canada.
These changes are advertised as Notices to Shipping (Broadcast and Written) by the Canadian Coast Guard and are followed up with Notices to Mariners, then charts are updated by hand correction, reprints or new editions.
Mariners are advised that all relevant Written Notices to Shipping should be kept until superseded by Notices to Mariners or through revised charts issued by the Canadian Hydrographic Service.
Written Notices to Shipping are available on the Canadian Coast Guard Website at: www.ccg-gcc.gc.ca/eng/CCG/NOTSHIP.
The Canadian Hydrographic Service is reviewing the impact of these changes with the Canadian Coast Guard and together we are preparing an action plan on the issuing of chart revisions.
For further information contact your local Regional Notices to Shipping (NOTSHIP) issuing authorities.
Pacific Telephone: (604) 666-6011 RMIC Email: rmic-pacific@pac.dfo-mpo.gc.ca |
* Fisheries and Oceans Canada Telephone: (867) 979-5269 Email: IQANORDREG@INNAV.GC.CA |
* Services provided in English and French
MONTHLY EDITION OF NOTICES TO MARINERS
WEB ACCESS
We are offering a feature where subscribers to our on-line service are able to receive the complete electronic monthly edition of our Notices to Mariners. We are encouraging our clients to visit the http://www.notmar.gc.ca/subscribe/ web site to subscribe for this service.
Users wishing to receive information updates for their charts can do so by setting up a ’User Profile’ on the following web page http://www.notmar.gc.ca/search/mycharts-eng.php?czoxOToibnRtPXN0ZXBfb25lJmxhbmc9ZSI7
This feature permits users to register the nautical charts they currently have in their possession. Registrants are then automatically notified by e-mail when a Notice to Mariners is published concerning these charts.
INDEX |
|
CANADIAN HYDROGRAPHIC SERVICE - ANNOUNCEMENT REGARDING CANADIAN HYDROGRAPHIC SERVICE CHART PATCHES. |
1 |
CANADIAN HYDROGRAPHIC SERVICE - CUMULATIVE CHART CORRECTIONS. |
1 |
CANADIAN HYDROGRAPHIC SERVICE - CURRENT CHART EDITION DATES. |
1 |
CANADIAN HYDROGRAPHIC SERVICE - PRINT ON DEMAND CHARTS - CARE AND USE. |
1 |
CANADIAN HYDROGRAPHIC SERVICE - TRANSPORT CANADA NAVIGATION SAFETY - ECDIS. |
2 |
CONSOLIDATION OF MARINE COMMMUNICATIONS AND TRAFFIC SERVICES (MCTS) CENTRES. |
2 |
*1101 CANADIAN HYDROGRAPHIC SERVICE - NAUTICAL CHARTS. |
2 |
*1102 CANADIAN HYDROGRAPHIC SERVICE - ELECTRONIC NAVIGATIONAL CHARTS. |
2 |
*1109 QUEEN CHARLOTTE STRAIT, CENTRAL PORTION/PARTIE CENTRALE - BUOY DISCONTINUED. |
3 |
*1110 CANADIAN COAST GUARD PUBLICATION - AMENDMENT TO THE RADIO AIDS TO MARINE NAVIGATION (PACIFIC AND WESTERN ARCTIC) PUBLICATION - 2013. |
6 |
|
NUMERICAL INDEX OF CANADIAN CHARTS AFFECTED |
|||||
|
Chart No. |
Page |
Chart No. |
Page |
Chart No. |
Page |
|
1313 |
2 |
|
|
|
|
|
1314 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
3313 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
3443 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
3475 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
3481 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
3490 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
3493 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
3548 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
4548 |
3 |
|
|
|
|
|
6206 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CANADIAN HYDROGRAPHIC SERVICE - ANNOUNCEMENT REGARDING CANADIAN HYDROGRAPHIC SERVICE CHART PATCHES.
Colour Web Patches are free to the mariner, and given the quality of many printers, should reproduce well. They will be available in real time all around the world.
CHS welcomes your feedback on this service at chsinfo@dfo-mpo.gc.ca
CANADIAN HYDROGRAPHIC SERVICE - CUMULATIVE CHART CORRECTIONS.
The cumulative Notices to Mariners corrections for charts can now be accessed at
www.notmar.gc.ca/search/notmar-eng.php
CANADIAN HYDROGRAPHIC SERVICE - CURRENT CHART EDITION DATES.
CHART EDITIONS
The three terms described below are used to indicate the publication status of Canadian charts.
NEW CHART - "NEWCHT"
The first publication of a Canadian chart embracing an area not previously charted to the scale shown, or embracing an area different from any existing Canadian chart.
NEW EDITION - "NEWEDT"
A new issue of an existing chart containing amendments essential to navigation in addition to those issued in Notices to Mariners and making existing editions obsolete.
REPRINTS
A new issue of the current edition of a chart incorporating no amendments of navigational significance other than those previously promulgated in Notices to Mariners. It may also contain amendments from other sources provided they are not essential to navigation. Previous printings of the current edition remain in force
The current chart edition dates can be accessed at www.chs-shc.gc.ca/charts-cartes/paper-papier/index-eng.asp
CANADIAN HYDROGRAPHIC SERVICE - PRINT ON DEMAND CHARTS - CARE AND USE.
Background
By providing nautical charts to the public, the goal of the Canadian Hydrographic Service (CHS) is to provide services for safe navigation in a fiscally responsible manner. As a result, CHS continues to expand its portfolio of nautical paper charts that are printed using Print On Demand (POD) technology. These charts are easily recognized by their whiter paper and the coloured logo of the Canadian Hydrographic Service. This new technology enables CHS to print charts in a more efficient manner while enhancing chart content through being able to quickly add new and important information. POD technology provides customers with up-to-date charts without the historical hand-drawn corrections or glued-on patches. Additionally, this technology eliminates out-of-stock situations which arise with the traditional printing and warehousing methods. In the event of a national emergency, CHS can respond to the appropriate authorities with best available information very quickly.
Care of Your POD Chart
CHS encourages its customers to handle the POD charts more carefully than the traditional lithographic charts. When plotting information on POD charts, use HB pencils and apply limited pressure. Testing has suggested that an Indian gum eraser is more effective than alternatives when used on the product. This eraser is also suitable for charts printed using lithographic processes.
CANADIAN HYDROGRAPHIC SERVICE - TRANSPORT CANADA NAVIGATION SAFETY - ECDIS.
Mariners are advised that ECDIS may not display some isolated shoal depths when operating in "base or standard display" mode. Route planning and monitoring alarms for these shoal depths may not always be activated. To ensure safe navigation and to confirm that a planned route is clear of such dangers, mariners should visually inspect the planned route and any deviations from it using ECDIS configured to display "all data". The automated voyage planning check function should not be solely relied upon.
CONSOLIDATION OF MARINE COMMUNICATIONS AND TRAFFIC SERVICES (MCTS) CENTRES
The Canadian Coast Guard is consolidating and modernizing its Marine Communications and Traffic Services. These changes will result in a configuration of 12 MCTS Centres strategically located across the country by spring 2015. Information pertaining to consolidation will be advertised to clients by all available means.
Phase I (completed Spring 2014)
Western Region
Tofino MCTS will close; services will be provided remotely by Prince Rupert MCTS
Phase II (completed Spring 2015
Western Region
Comox MCTS and Vancouver MCTS will close; services will be provided remotely by Victoria MCTS
There will be no reduction in the MCTS level of service provided to clients. Mariners should be aware that, as a result of consolidation, contact information, weather and other pertinent marine broadcast schedules may change. These changes will be advertised in RAMN, as they become available.
Mariners should check NOTMAR PART 3 on a monthly basis for updates.
*1101 CANADIAN HYDROGRAPHIC SERVICE - NAUTICAL CHARTS.
|
CHARTS |
MAIN TITLE |
SCALE |
PUBLISHED |
CAT# |
PRICE |
| New Editions | |||||
|
1313 |
Batiscan au/to Lac Saint-Pierre |
1:40000 |
07-JUN-2013 |
1 |
20.00 |
|
1314 |
Donnacona à/to Batiscan |
1:40000 |
21-JUN-2013 |
1 |
20.00 |
*1102 CANADIAN HYDROGRAPHIC SERVICE - ELECTRONIC NAVIGATIONAL CHARTS.
|
NEW PRODUCTS |
|
|
S-57 ENC NUMBER |
CHART TITLE |
|
CA579101 |
Grosse-Île-nord |
|
CA579102 |
Pointe-Basse |
|
CA579103 |
Grandes-Bergeronnes |
|
CA579104 |
Gascons |
|
CA579141 |
Neuville |
|
CA579142 |
Deschaillons-sur-Saint-Laurent |
|
CA579144 |
Ste-Anne-De-Sorel |
|
CA579145 |
Rivière Nicolet |
|
CA579146 |
Verchères |
|
CA579147 |
L'Étang-du-Nord |
|
CA579166 |
Cloridorme |
|
CA579168 |
Île d'Entrée |
|
CA579169 |
Petite-Tourelle |
|
CA579217 |
L'Anse-au-Griffon |
|
CA579218 |
L'Anse-à-Valleau |
|
CA579219 |
Rivière-au-Tonnerre |
|
CA579220 |
Pointe-aux-Loups |
|
CA579223 |
Tête-à-la-Baleine |
|
CA579225 |
Pointe aux Cenelles |
|
CA579238 |
Rivière-la-Madeleine |
*1109 QUEEN CHARLOTTE STRAIT, CENTRAL PORTION/PARTIE CENTRALE - BUOY DISCONTINUED.
Reference Chart: 3548
The Green porthand buoy marked N25 (50°43'22.5"N 127°27'31.8"W
(P2013-026)
3313 - Ladysmith Harbour - Sheet/Feuille 15 - New Edition - 02-JAN-2009 - NAD 1983
|
22-NOV-2013 |
LNM/D. 25-OCT-2013 |
||
|
Add |
wreck, least depth unknown, dangerous to surface navigation marked PA Rep(2013)
|
49°00′38.8″N 123°49′50.3″W |
|
|
This notice affects Electronic Navigational Chart: CA470070, CA570154 |
|||
|
DFO(6202756-01) |
|||
3313 - Stuart Channel South/Sud - Sheet/Feuille 15 - New Edition - 02-JAN-2009 - NAD 1983
|
22-NOV-2013 |
LNM/D. 25-OCT-2013 |
||
|
Add |
wreck, least depth unknown, dangerous to surface navigation marked PA Rep(2013)
|
49°00′38.8″N 123°49′50.3″W |
|
|
This notice affects Electronic Navigational Chart: CA470070, CA570154 |
|||
|
DFO(6202756-01) |
|||
3443 - Thetis Island to/à Nanaimo - New Edition - 20-DEC-2002 - NAD 1983
|
22-NOV-2013 |
LNM/D. 28-JUN-2013 |
||
|
Add |
wreck, least depth unknown, dangerous to surface navigation marked PA Rep(2013)
|
49°00′38.8″N 123°49′50.3″W |
|
|
This notice affects Electronic Navigational Chart: CA470070, CA570154 |
|||
|
DFO(6202756-01) |
|||
3475 - Ladysmith Harbour - New Edition - 30-DEC-2005 - NAD 1983
|
22-NOV-2013 |
LNM/D. 28-JUN-2013 |
||||
|
Add |
wreck, least depth unknown, dangerous to surface navigation marked PA Rep(2013)
|
49°00′38.8″N 123°49′50.3″W |
|||
| This notice affects Electronic Navigational Chart: CA470070, CA570154 | |||||
|
DFO(6202756-01) |
|||||
3481 - Approaches to/Approches à Vancouver Harbour - New Edition - 06-APR-2012 - NAD 1983
|
01-NOV-2013 |
LNM/D. | |||
|
Add |
pier, jetty
|
between
|
||
|
This notice affects Electronic Navigational Chart: CA470072, CA570073 |
||||
|
DFO(6202746-01) |
||||
3490 - Fraser River/Fleuve Fraser, Sand Heads to/à Douglas Island, Compartment B-C - New Edition -
02-NOV-2012 - World Geodetic System 1984
|
20-NOV-2013 |
LNM/D. 14-JUN-2013 |
||
|
Amend |
Q Y 9m to read Q Y 13m against light
|
49°09′18.0″N 122°56′40.8″W |
|
|
This notice affects Electronic Navigational Chart: CA570015 |
|||
|
(P2013031) LL(LL361) DFO(6202755-01) |
|||
|
Amend |
ISO Y 2s 14m to read ISO Y 2s 19m against light
|
49°09′17.6″N 122°56′33.7″W |
|
|
This notice affects Electronic Navigational Chart: CA570015 |
|||
|
(P2013033) LL(LL362) DFO(6202755-02) |
|||
3493 - Vancouver Harbour Western Portion/Partie Ouest - New Edition - 11-JUN-2010 - NAD 1983
|
01-NOV-2013 |
LNM/D. 01-JUN-2012 |
||
|
Add |
pier, jetty
|
between
|
|
|
This notice affects Electronic Navigational Chart: CA470072, CA570073 |
|||
|
DFO(6202746-01) |
|||
|
Add |
light F R (Priv)
|
49°17′25.4″N 123°06′03.8″W |
|
|
This notice affects Electronic Navigational Chart: CA570073 |
|||
|
DFO(6202746-02) |
|||
3548 - Port Hardy - New Edition - 26-SEP-1997 - NAD 1983
|
22-NOV-2013 |
LNM/D. 09-AUG-2013 |
||
|
Delete |
green port hand pillar buoy, marked N25
|
50°43′22.6″N 127°27′31.9″W |
|
|
This notice affects Electronic Navigational Chart: CA570033 |
|||
|
(P2013026) DFO(6202751-01) |
|||
6206 - Seven Sisters Falls to/à Slave Falls - Sheet/Feuille 1 - New Edition - 15-SEP- 2000 - NAD 1983
|
29-NOV-2013 |
LNM/D. 14-JUN-2013 |
||
|
Delete |
Tower |
50°08'45.5'N 095°48'48.0"W |
|
|
DFO(6603925-01) |
|||
*1110 CANADIAN COAST GUARD PUBLICATION - AMENDMENT TO THE RADIO AIDS TO MARINE NAVIGATION (PACIFIC AND WESTERN ARCTIC) PUBLICATION - 2013.
Part 1 - Forward
Page 8 of 8
AMEND
Regional Office Addresses (covering the Pacific coast and Western Arctic)
Regional Superintendent
Marine Communications and Traffic Services
Fisheries and Oceans Canada
Canadian Coast Guard
Pacific Region
Institute of Ocean Sciences
P.O. Box 6000, 9860 West Saanich Road
Sidney, BC V8L 4B2
Telephone: 250-363-8922
Facsimile: 250-363-6787
mailto:mcts@dfo-mpo.gc.ca Marine Communications and Traffic Services
TO READ
Regional Superintendent
Marine Communications and Traffic Services
Fisheries and Oceans Canada
Canadian Coast Guard
Pacific Region
Victoria Coast Guard Base
P.O. Box 6000, 9860 West Saanich Road
25 Huron Street
Victoria BC V8V 4V9
Telephone: 250-363-8922
mailto:mcts@dfo-mpo.gc.ca Marine Communications and Traffic Services

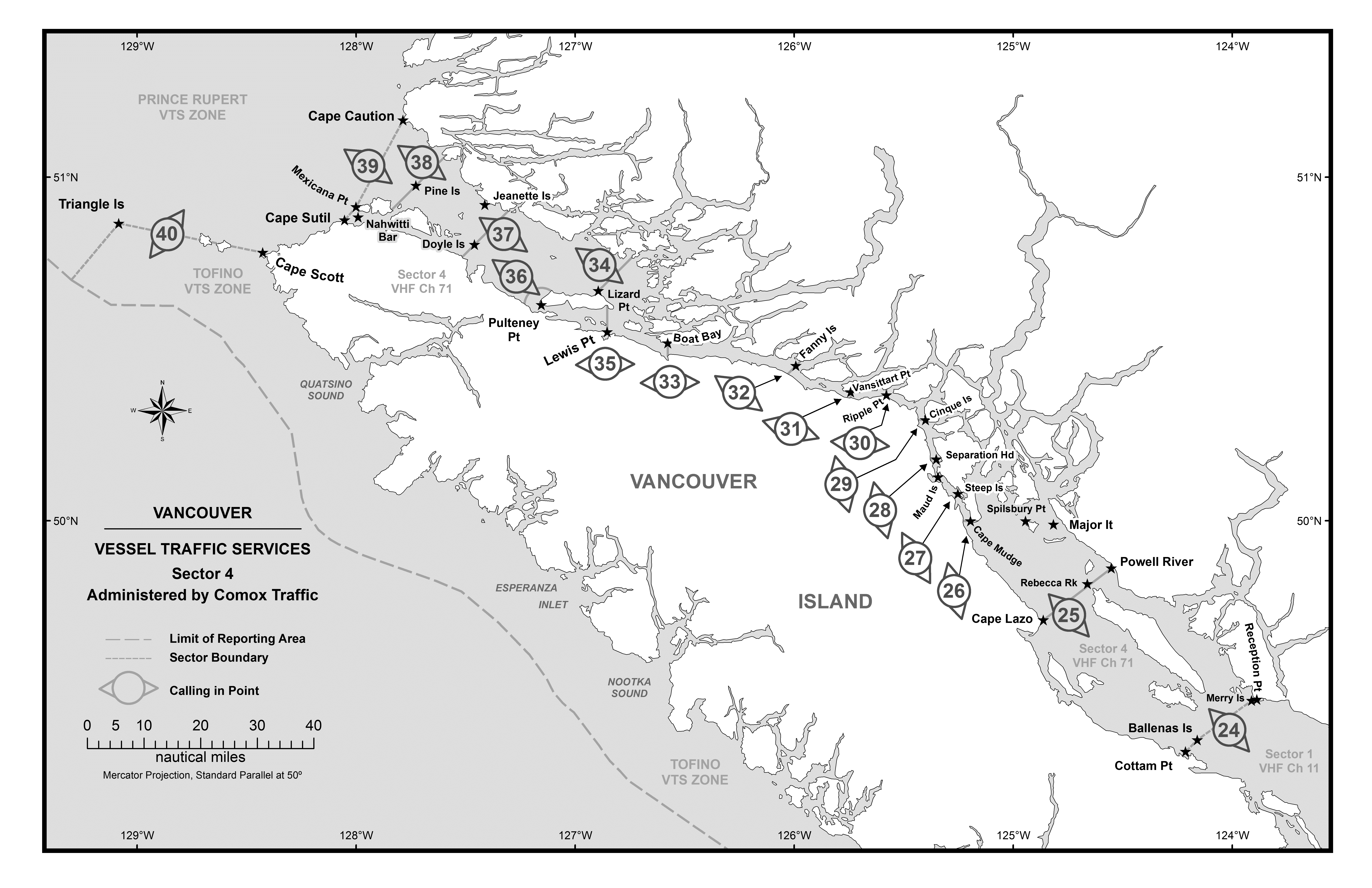

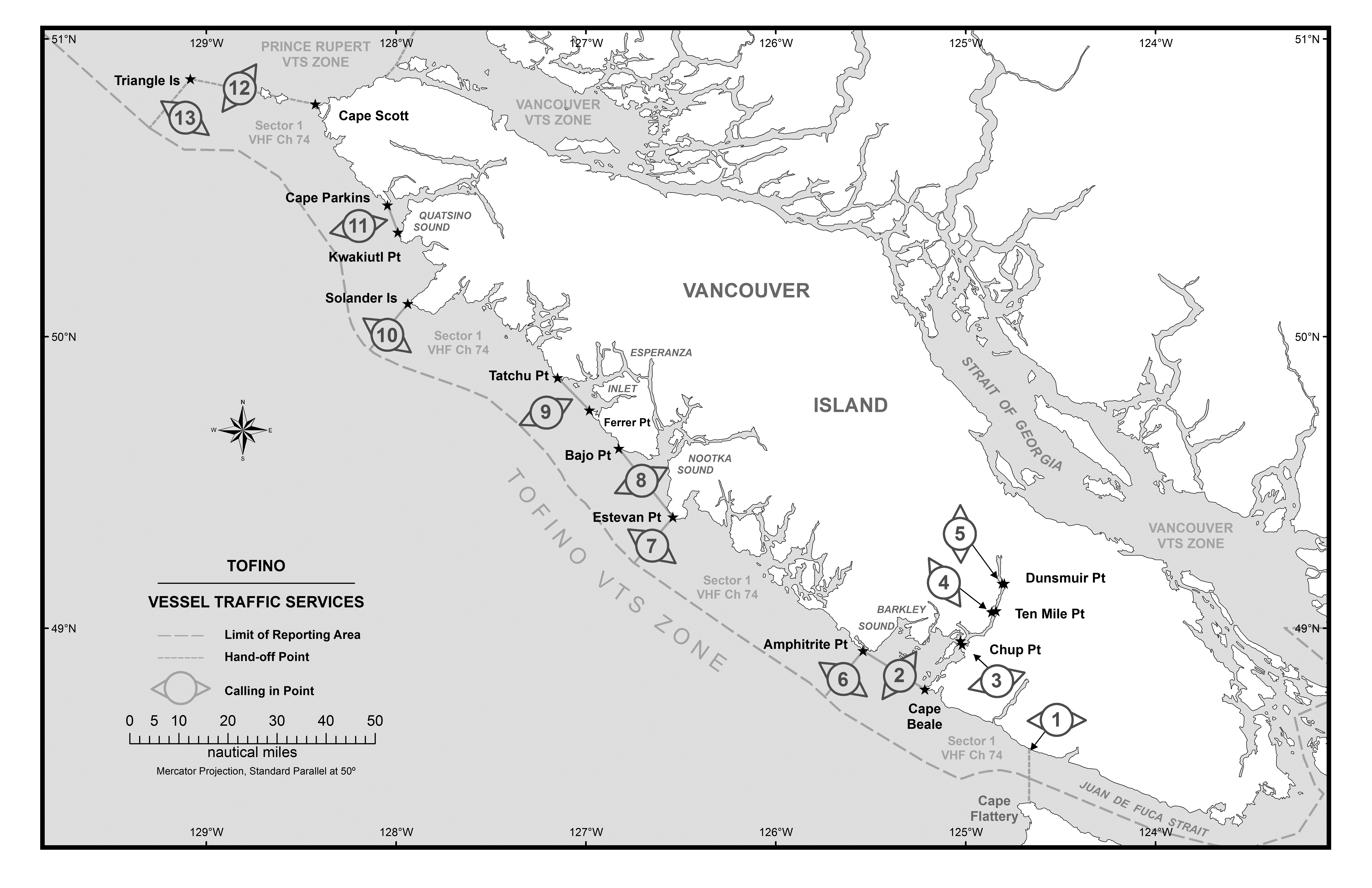

Part 3 - Vessel Traffice Services
These SECTOR changes will be effective on December 2, 2013 at 0900 PST
Page 19 of 35

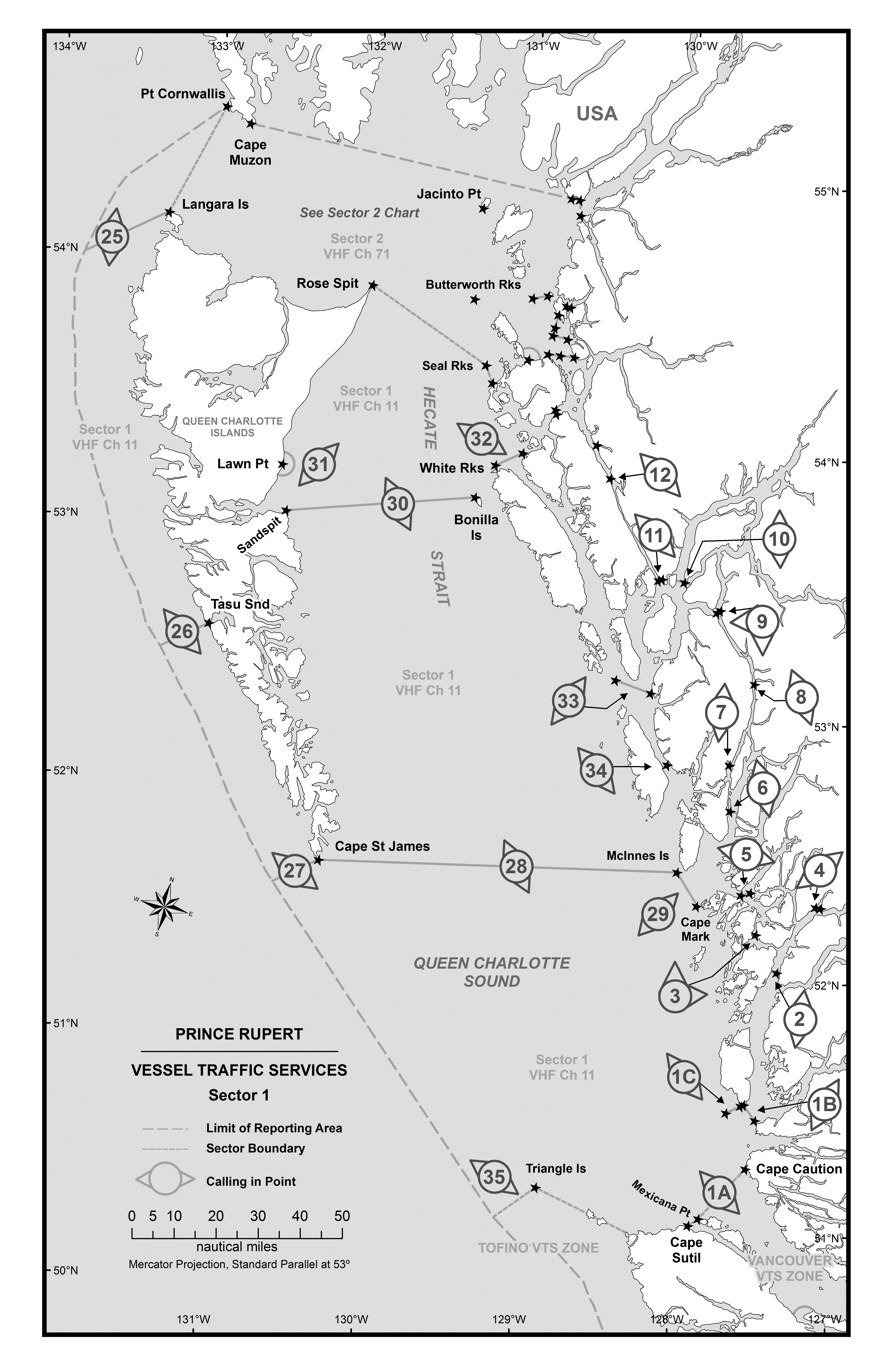

Vessel Traffic Services Zone Schedules - Prince Rupert VTS Zone
AMEND
table Sector and Boundaries
All Canadian waters north of Vancouver Island from a line joining Cape Caution light 51°09’50”N 127°47’06”W; to Triangle Island 50°52’00”N 129°05’00”W; thence following a line 220 degrees (T) to the limit of the Territorial Sea; and thence to the Alaska/British Columbia border, but not including those waters described in Sector 2 or mainland inlets and channels outside VHF coverage.
TO READ
All Canadian waters north of Vancouver Island from a line joining Cape Caution light 51°09’50”N 127°47’06”W; to Mexicana Point 50° 54' 51.96"N 127° 59' 59.58.04"W thence to Cape Sutil 50° 52'34.23"N 128° 3' 7.24"W. Then following the northwestern shore line to Cape Scott thence; a line extending 281° (T) from 50°46’57”N 128°25’32”W; to 50°52’00”N 129°05’00”W following a line 220 degrees (T) to the limit of the Territorial Sea; and thence to the Alaska/British Columbia border, but not including those waters described in Sector 2 or mainland inlets and channels outside VHF coverage.
Page 19 of 35 Table Calling-In-Points
AMEND
Calling-In-Point 1A
Calling-In-Points |
||||
Number |
Sector |
Name |
General Description and Conditions |
Geographic Description |
| 1A | Change | Cape Caution Triangle Island | A line joining Cape Caution light withTriangle Island. | A line running from 51°09'50"N 127°47'06"W to –to 50°52’00”N 129°05’00”W |
TO READ
Calling-In-Points |
||||
Number |
Sector |
Name |
General Description and Conditions |
Geographic Description |
| 1A | Change | Cape Caution Cape Sutil | A line from Cape Caution light to Mexicana Point thence to Cape Sutil. | A line running from 51°09'50"N 127°47'06"W to – 50° 54' 51.96"N 127° 59' 59.58.04"W to - 50° 52'34.23"N 128° 3' 7.24"W |
Part 3 Page 23 of 35
REPLACE Chartlet:
PRINCE RUPERT VESSEL TRAFFICE SERVICES Sector 1
WITH:
New PRINCE RUPERT Sector 1 chartlet with change to CIP 1A
Part 3 Page 27 of 35
REPLACE
Chartlet: TOFINO VESSEL TRAFFIC SERVICES
WITH
New TOFINO VESSEL TRAFFIC SERVICES CHARTLET showing no line from Cape Caution to Triangle Island.
Part 3 Page 28 of 35
AMEND
Vancouver VTS Zone
Sector 4 Boundaries
Sector |
Boundaries |
4 |
All Canadian waters bounded on the south by a line from Reception Point light, 49°28’15.9”N 123°53’12”W; to Merry Island light 49°28’03.5”N 123°54’40”W; to Ballenas Island light 49°21’02”N 124°09’32”W; to Cottam Point 49°18’57”N 124°12’45”W; and bounded on the north by a line from Cape Scott light 50°46’57”N 128°25’32”W; to 50°52’00”N 129°05’00”W; to Cape Caution light 51°09’50”N 127°47’06”W. |
TO READ
Sector |
Boundaries |
4 |
All Canadian waters bounded on the south by a line from Reception Point light, 49°28’15.9”N 123°53’12”W; to Merry Island light 49°28’03.5”N 123°54’40”W; to Ballenas Island light 49°21’02”N 124°09’32”W; to Cottam Point 49°18’57”N 124°12’45”W; and bounded on the north by a line fromCape Sutil 50° 52'34.23"N 128° 3' 7.24"W to Mexicana Point 50° 54' 51.96"N 127° 59' 59.58.04"W then to Cape Caution 51°09'50"N 127°47'06"W. |
Page 32 of 35
AMEND
Calling-In-Points
Calling-In-Points |
||||
Number |
Sector |
Name |
General Description and Conditions |
Geographic Description |
| 39 | Change | Cape Caution Triangle Island | A line joining Cape Caution light with Triangle Island. When southbound at Cape Caution, mariners shall indicate whether their route is through Scott Channel, Goletas Channel (Nahwitti Bar), Gordon Channel (Pine Island), Bolivar Passage, Ripple Passage or Richards Channel. | A line running from from 51°09’50”N 127°47’06”W to – 50°52’00”N 129°05’00”W |
TO READ
Calling-In-Points |
||||
Number |
Sector |
Name |
General Description and Conditions |
Geographic Description |
| 39 | Change | Cape Caution Cape Sutil | A line from Cape Caution light to Mexicana Point thence to Cape Sutil. When southbound at Cape Caution, mariners shall indicate whether their route is through Scott Channel, Goletas Channel (Nahwitti Bar), Gordon Channel (Pine Island), Bolivar Passage, Ripple Passage or Richards Channel. | A line running from 51°09'50"N 127°47'06"W to – 50° 54' 51.96"N 127° 59' 59.58.04"W to - 50° 52'34.23"N 128° 3' 7.24"W |
Part 3 - Page 35 of 35
REPLACE
VANCOUVER VESSEL TRAFFIC Sector 4 Chartlet
WITH
NEW VANCOUVER VESSEL TRAFFIC SERVICES CHARTLET
ARC 403 - Western Arctic, First Edition, 2011 -
Chapter 1 - Paragraph 123, after "is abandoned and"
Delete: reported (1987) to have 3 m over it.
Replace by: has 1 m over it.
(C2013-024.01)
Chapter 1 - Paragraph 126, after "is abandoned and"
Delete: reported (1987) to have 2.4 m over it.
Replace by: has 1.4 m over it.
(C2013-024.02)
British Columbia, Volume 1, Seventeenth Edition, 2004 -
Chapter 8 - Delete paragraph 65.
(P2013-12.1)
PAC 201 - Juan de Fuca Strait and Strait of Georgia, First Edition, 2012
Chapter 5 - In the vicinity of paragraph 41
Replace Table 5.2 Vancouver Harbour Anchorages with the new one provided in Section 4
of this Monthly Edition
(P2013-10.01)
Chapter 6 - Paragraph 126
Delete: 0.1 miles east
Replace by: about 1 mile west
(P2013-11.1)
PACIFIC |
||||||||||
132.5 |
Wickaninnish Island |
Clayoquot Sound South. 49 08 28.3 125 56 0.2 |
Fl |
W |
4s |
..... |
4 |
White mast, green, white, black square daymark. |
Year round. Chart:3685 Edn 11/13(P13-025) |
|
361 362 |
City Reach range 2 |
| | | | | | | | |
On S. bank of river. 49 09 17.9 122 56 41 095°20' 161m from front. |
Q Iso |
Y Y |
1s 2s |
13.4 13.8 |
13 15 |
Mast, red daymark, white vertical stripe. Mast, red daymark, white vertical stripe. |
In operation 24 hours. Year round. In operation 24 hours. Year round. Chart:3490 Edn 11/13 (P13-033) |
755.2 G5866.6 |
Double Islets |
54 57 43.9 129 56 54.6 |
Fl(3) |
W |
12s |
7.7 |
5 |
Square skeleton tower, orange rectangular daymark. |
Flash 0.5 s; eclipse 2 s; flash 0.5 s; eclipse 2 s; flash 0.5 s; eclipse 6.5 s. Year round. Chart:3920 Edn 11/13(P13-030) |
|
765 G5870 |
Richards Point |
On extremity of point Observatory Inlet. 55 17 19.5 129 48 51.2 |
Fl |
W |
6s |
6.1 |
5 |
Square skeleton tower, orange rectangular daymark. |
Flash 0.5 s; eclipse 5.5 s. Year round. Chart:3933 Edn 11/13(P13-029) |
|
765.5 G5872 |
Brooke Shoal |
On shoal. 55 22 55.2 129 43 01.6 |
Fl(3) |
W |
12s |
4.7 |
5 |
Square skeleton tower, orange rectangular daymark. |
Flash 0.5 s; eclipse 2 s; flash 0.5 s; eclipse 2 s; flash 0.5 s; eclipse 6.5 s Year round. Chart:3920 Edn 11/13(P13-027) |
|
Name of Ship or Sender:..................................................................... Date:....................................
Address of Sender:..........................................................................................................................
Street # Street Name
Town / City:.............................. Prov / State:....................... Postal Code / Zip Code: ........................
Tel / Fax / E-mail address of sender (if appropriate):............................................................................
Observation Date:............................................. Time (UTC): ...........................................................
Geographical Position:......................................................................................................................
Coordinate Position: Lat: ............................................... Long:.........................................................
Position Method: q DGPS q GPS with WAAS q GPS q Radar qOther
Horizontal Datum Used: qWGS 84 q NAD 27 q Other
Estimated Position Accuracy:............................................................................................................
Chart #:............................................................ Datum: q NAD 27 q NAD 83
Chart Edition:.................................................... Last Correction applied:............................................
Publications affected: (Quote Volume and page):.................................................................................
*Full details (Attach additional sheets as necessary)............................................................................
Mariners are requested to notify the responsible authorities when new or suspected dangers to navigation are discovered, changes are observed in aids to navigation, or corrections to publications are seen to be necessary.
In the case of new or suspected dangers to navigation, it is important that all details be given in order to aid with future investigations. Items of interest include heights, depths, physical description, type of bottom and equipment method used to position the item. It is helpful to mark details on chart, which will be promptly replaced by the Canadian Hydrographic Service.
Reports should be made to the nearest Marine Communications and Traffic Services Centre (MCTS) and should be confirmed in writing to:
|
Director, Navigation Systems Canadian Coast Guard Department of Fisheries and Oceans Ottawa, Ontario, K1A 0E6 |
In the case of information concerning aids to navigation or the List of Lights, Buoys and Fog Signals. |
|
OR |
|
Dominion Hydrographer Canadian Hydrographic Service Department of Fisheries and Oceans Ottawa, Ontario, K1A 0E6 |
In the case of new or suspected dangers to navigation or where corrections to "Sailing Directions" appear to be necessary. |
Or general questions on Coast Guard programs or services please send an e-mail message to:
info@dfo-mpo.gc.ca (Please include your postal code and e-mail address).
